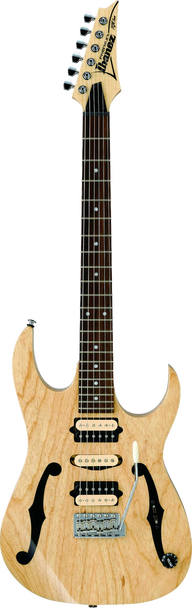

Ibanez Premium PGM80P NT Paul Gilbert Signature

• Tilt Neck Joint w/Joint Plate
• DiMarzio® Pickups
• Gotoh® machine-heads

Specifications

neck type PGM Premium 5pc Maple/Walnut neck w/KTS® TITANIUM rods
body Ash body
fretboard Rosewood fretboard w/White dot inlay
fret Narrow & Tall frets w/Premium fret edge treatments
bridge Wilkinson® WV6-SB tremolo bridge
neck pickup DiMarzio® PAF® Master (H) neck pickup (Passive/Alnico)
middle pickup DiMarzio® PGM Single-coil (S) middle pickup (Passive/Alnico)
bridge pickup DiMarzio® PAF® Master (H) bridge pickup (Passive/Alnico)
factory tuning 1E, 2B, 3G, 4D, 5A, 6E
string gauge .010/.013/.017/.026/.036/.046
hardware colour Chrome

Neck Dimensions

Scale : 648mm/25.5"
a : Width 43mm at NUT
b : Width 57mm at 22F
c : Thickness 20mm at 1F
d : Thickness 22mm at 12F
Radius : 400mmR

Other

Gotoh® MG-T locking machineheads
Gigcase

*Specifications subject to change without notice.
