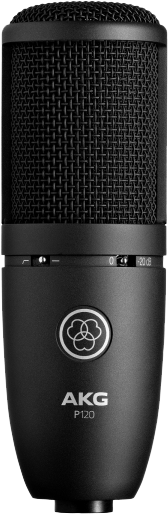

AKG P120 Studio Condenser Microphone

The P120 is a 2/3-inch diaphragm true condenser microphone that offers solidly built quality, outstanding performance and excellent value. The low-mass diaphragm delivers a clear sound with accurate sonic detail for vocals, speech and instrument recording in project studios and for home recording.

• Rugged all-metal body and robust design withstands tough day-to-day use.
• Switchable bass-cut filter eliminates rumble or footfall noise
• Switchable attenuation pad for high SPL applications up to 150 dB SPL

Specifications

General

Audio Frequency bandwidth 20 to 20000 Hz
Sensitivity 24 mV/Pa
Equivalent Noise Level 19 dB-A
Signal to Noise 75 dB-A
Preattenuation Pad -20 dB
Bass Cut Filter 300 - 6 dB/octave Hz
Electrical Impedance <= 200 Ohms
Recommended Load Impedance >= 1000 Ohms

Polar Patterns

Cardioid

Powering Interface

Voltage 44 to 52 V
Current <= 3 mA

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Dimensions / Weight

Length 165 mm
Diameter 54 mm
Net Weight 455 g

*Specifications subject to change without notice.
