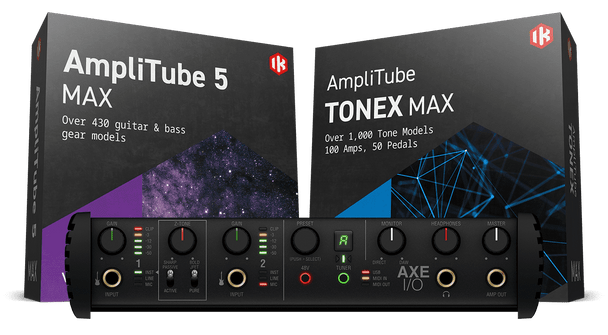

IK Multimedia AXE I/O + AmpliTube 5 MAX + TONEX MAX Bundle

The IK Multimedia AXE I/O + AmpliTube 5 MAX + TONEX MAX Bundle combines a professional-grade audio interface purpose-built for guitarists with two of IK Multimedia's most comprehensive software suites. The AXE I/O is a 2-in/5-out USB audio interface featuring a unique triple-topology instrument input, patent-pending Z-TONE impedance control, and a dedicated Amp Out for reamplification and tone modelling. This bundle is suited to recording guitarists seeking the highest quality signal capture, advanced tone shaping flexibility, and a complete in-the-box guitar production workflow.

The AXE I/O features three selectable input circuit topologies — PURE (transparent), JFET (Class A harmonic enhancement), and ACTIVE (for active pickups) — each delivering 117 dB dynamic range and a 3 Hz–32 kHz frequency response. The patent-pending Z-TONE circuit allows impedance to be adjusted from 1 MOhm down to 2.2 kOhms, interacting directly with the guitar's pickups for a wide tonal palette. Two rear combo inputs with phantom power accommodate microphones and line instruments, while two PURE mic preamps offer 116 dB dynamic range and a 5 Hz–32 kHz frequency response. The interface also includes MIDI I/O, two configurable expression pedal/switch inputs, a front-panel tuner, an assignable preset knob for AmpliTube integration, and a Control Panel application for advanced routing and assignment. The bundle includes AmpliTube 5 MAX and TONEX MAX for Mac/PC, providing access to an extensive library of amp, cabinet, effects and tone capture tools.

The dedicated Amp Out enables straightforward reamplification and tone modelling setups without additional accessories, with a low-noise design that minimises ground loops during high-gain recording. The AXE I/O operates over USB 2.0 and supports up to 24-bit/192 kHz conversion with asynchronous USB audio and a low-jitter internal clock. The rugged metal housing is compact enough for studio or home use. The included Control Panel software provides routing management, phantom power control, ground lift, controller assignment, and sample rate selection from a single application.

Specifications:

CONNECTIONS

• 2 in / 5 out (one low-noise Amp out)
• 2 ultra-low noise mic in/balanced line in
• Triple topology guitar input with Z-TONE®
• 2 balanced monitor out / 2 line out
• Reference headphones out
• 2 fully configurable external control input
• MIDI input/output
• USB 2.0 compatible with Mac/PC

AUDIO

• High-resolution ultra low-noise Class A microphone preamps
• Best-in-class conversion and superior analog design
• Asynchronous USB audio, ultra low conversion jitters for premium quality
• 117dB dynamic range
• Includes control software
• Up to 192 kHz sampling rate

OTHER FEATURES

• Selectable Active/Passive/discrete JFET/Pure instrument preamp
• Patent pending Z-TONE® input for a tonal palette never heard before
• Amp Out for reamplification or Tone Modeling using TONEX for Mac/PC
• Connect up to 2 expression pedals, single and double-switches
• Fully assignable data-knob – for AmpliTube preset browsing and more
• Built-in Tuner
• Rugged/compact metal housing

*Specifications subject to change without notice
